CR Models

Go Digital With OPAL-MD

Your facility can now enjoy the countless benefits of digital radiography without experiencing a financial burden. The cost of processing just 8 studies a day can amount to the cost of taking your practice into the digital world. Retire your chemical processor and provide your facility with Viztek's premier CR coupled with the OPAL PACS software for superior image management.

Benefits

  • High Speed CR
  • Exam room viewing software
  • CD burning and paper print functions
  • Auto Image routing and film printing
  • Multimodality, multi vendor functionality and compatibility
  • Importing CDs from outside facilities
  • Scan documents into exams
  • Training and 24/7 support for hardware and software components
  • Disaster Recovery plan to archive images automatically at Vizteks offsite location
  • Eliminate the cost associated with processing film
System Includes
  • Viztek Opal CR unit
  • 4 cassettes w/plates
  • Opa-RAD radiology viewing software
  • 2 extra viewer licenses
  • DICOM Send, DICOM Print, Image Server
  • 20" 2MP flat panel LCD monitor 1600 x 1200
  • Exam room viewing software
  • Tower Mini Server/Workstation with 500 GB RAID 1
The Kodak Point-of-Care CR 140 System is ideal for computed radiography examinations in busy clinics and specialty practices such as chiropractors, podiatrists, and orthopaedists. It is also recommended for satellite locations, and remote sites such as military field installations.

Durable, compact, and lightweight, this system enables all imaging functions to be performed at the point of patient care with one affordable package that includes the single-plate CR reader, Kodak flexible phosphor screens, advanced image management software, and a PC based review station.

Highly versatile

The Kodak Point-of-Care CR 140 System is part of a modular solution that can be configured to meet most clinical applications. Its Kodak Quality Control Scanner interface lets you set up the system to capture high-quality x-ray images of any body part with minimal steps for scanning, processing, and image quality assurance. All imaging parameters are optimized, resulting in digital images that can be enhanced, enlarged, duplicated, and sent to any location in seconds as a DICOM 3.0 file with no loss of resolution. Images also can be printed or archived locally on CDs or DVDs.

Point-of-care productivity

Mounted on an optional wheeled Z-cart or placed on a tabletop, the Kodak Point-of-Care CR 140 System can be used in virtually any location. With the Z-cart, this system can be rolled into any situation where nearly instant digital images are needed.

Military applications

Deployed by military forces worldwide, the field-proven Kodak Point of-Care CR 140 System is ideal for remote locations. Its durable design can withstand rough handling, temperature and humidity extremes, and stresses of nature such as wind, sand, and moisture. Even in the most demanding conditions, this portable system is easy to set up and operate.



Specifications
Throughput
    Up to 41 cassettes per hour
Time to First Image
    63 seconds
Grayscale Resolution
    Acquisition: 12 bits per pixel
    Display: 12 bits per pixel
Dimensions (H x W x D)
    13.4 x 29.0 x 25.8 in. (34.0 x 73.5 x 65.5 cm)
Weight
    99 lbs (45 kg)
System Configurations
    Desktop
    Z-cart (mobile cart)
    Distributed CR
Power Requirements
    Single-phase 50/60 Hz, 200 VA, 100–240
    VAC (+/– 10%), 2A, UPS required
Operating Conditions
    Operating conditions: 10–40°C, 90% at 35°C
    Storage: –15–60°C
Cassette Size
High Resolution
Size: Pixel Matrix Sampling Density
8 x 10 in. (20 x 25 cm) 2216 x 2628 8.4 pix/mm
10 x 12 in. (25 x 30 cm)  2092 x 2508 7.0 pix/mm
14 x 14 in. (35 x 35 cm) 2916 x 2916 7.0 pix/mm
14 x 17 in. (35 x 43 cm) 2120 x 2548 5.0 pix/mm

The Kodak Point-of-Care CR 260 System is ideal for affordable computed radiography solutions in medium sized healthcare facilities and clinics. Designed to enhance workflow and help improve productivity, the CR260 can implement centralized CR and DR environments such as clinics, ER, and OR departments. All imaging functions can be performed at the point of patient care with this compact package that includes a single-plate CR reader, kodak flexible phospor screens, and a PC based review station.


Kodak quality control workstation software with its modular design elimates steps in scanning, processing, and reviewing images for quality assurance. users can choose resolution scan modes to suit their applications. A usb 2.0 interface enables connection to a variety of devices such as a touch-screen monitor.

Highly versatile

This durable, lightwieght, tabletop system expands on the powerful functionality of the kodak point of care cr120 system and kodak point of care cr140 system. It provides throughput of up to 60 plates per hour, with the optional high resolution scanning modes for even greater flexibility.


Connectivity and productivity

Kodak quality control workstation software which drives the kodak point of care cf260 system, is designed to streamline clinical workflow and maximize productivity. With its DICOM 3.0 capabilities, the system can be seamlessly integrated with a broad variety of modality equipment, RIS and PACS systems. Mounted on a wheeled Z-cart (optional), it can be conveniently rolled into any situation where instant digital images are needed.




Specifications
Throughput
    Up to 60 cassettes per hour
Time to First Image
    37 seconds
Grayscale Resolution
    Acquisition: 12 bits per pixel
    Display: 12 bits per pixel
Dimensions (H x W x D)
    13.4 x 29.0 x 25.8 in. (34.0 x 73.5 x 65.5 cm)
Weight
    99 lbs (45 kg)

Cassette Size
High Resolution
Size: Pixel Matrix Sampling Density
8 x 10 in. (20 x 25 cm) 2404 x 2992 8.4 pix/mm
10 x 12 in. (25 x 30 cm)  2992 x 3584 8.4 pix/mm
14 x 14 in. (35 x 35 cm) 4172 x 4172 8.4pix/mm
14 x 17 in. (35 x 43 cm) 4172 x 5056 8.4 pix/mm

Combine the versatile Opal-RAD Professional Workstation software with our CR Scanner and you have the Opal-RAD QC Workstation. This acquire workstation provides the same high-end diagnostic tools available through Professional Workstation application, but is tailored for working with our Computed Radiography's (CR) images.

Orex PcCR 1417 Distributed Radiography

Specialized tools for the Opal-RAD QC Workstation include a proprietary "Unsharp Masking" image refinement tool that enhances the quality of the CR images. Also included are measurement and annotation tools, CD-burning archive capability, and DICOM sending features.

Avaliable Models:
  • Viztek CR -- 56 plates per hour

Avaliable Cassettes:
  • 14 x 17
  • 10 x 12
  • 8 x 10
  • 9.5 x 9.5
  • 14 x 14.

Moving into the digital x-ray world is simple: retain your current x-ray machine and add the Opal-RAD QC Workstation and a CR digital scanner. These tools provide a truly stand-alone acquire workstation where images are acquired, quality checked, diagnosed, archived, and optionally sent to an external PACS. This is an optimal solution for small clinics looking to say goodbye to their film processing days and reduce the cost of radiology.

Used in combination with an Opal-RAD PACS, the Opal-RAD Workstation becomes an invaluable member of the Viztek suite of digital radiology software tools. X-ray technologists are able to continue scanning new patients while the images are stored on the central Opal-RAD Server and doctors view the exams in Patient rooms on connected Opal-RAD Viewers.

As a standalone product or part of a larger PACS, the Opal-RAD Workstation is your solution for taking your current x-ray business into the digital realm.

 Benefits

  • Available in Multiple Configurations
  • Opal-acquisition Software
  • Market Leading Image Quality
  • Compact Table top Convenience
  • Supports DICOM Modality Worklist
  • Plates available in four sizes
  • Allows for Importing Outside CDs
  • Burn Patient CDs with viewer
  • Scan Documents in to Exams
  • Fast Installation and Application Process
  • Eliminates the cost associated with processing film
  • Mobile kits available
 System Features
  • Single Cassete Feed
  • 4 cassettes Includes
  • Opal Front end viewing software
  • Data acquisitio: 20 bits/pixel
  • Pixel Matrix Size: 3480x4248
  • 14x17 cassette size:10 pixels/mm
  • Power Requirement:120v/60Hz
  • Dimensions: 27.x x 27.6 x 18.2
Runs Fast, Easy-To-Use, Doesn't break!
Now you can easily convert your clinic to digital radiolography with the REGIUS Nano CR system. Processing an astounding 76 plates (14" x 17") per hour, the nano CR lets you take care of more patients in less time. this compact, single bay reader is designed with dependable, high quality components to ensure system reliability. This means your Nano CR investment will operate flawlessly and give you a great return on investment for years to come.

The Nano CR features intelligent control station software with auto recognition and self learning capabilities. You will be able to generage high quality diagnostic images with minimal training and fewer steps for improved workflow.


  Customer Recognized Values
-fast... a 2 view exam can be completed in about one minute
-Cassette release handle allows the user access to remove a cassette in the event of a jam. No service call necessary!
-Intelligent systems adjust image quality to your preference
-Dual reader orientation option for customized space utilization
-Optical unit sweeper enables self maintenance for pristine image quality and longer product lifetime
-Our patented, rigid image plate is contact free within the CR Reader elimating the potential for image artifacts and extends the life of the plate.

A new Compact, high-performance design.

A new Compact, high-performance design.

Utilizing a unique dual bay design,the high speed reader of REGIUS Model 190 processes up to 90 plates per hour for maximum performance. This next generation reader radically improves workflow all within a mere 58×58 cm footprint.

Centralized image checking for flexible layout

Centralized image checking for flexible layout

The "Ultimate Resource Sharing" concept provides the flexibility to separate the location of the consoles and the readers. This allows for the same fast and through image checking as with conventional systems. The result:system layout and productivity are optimized according to the number of examinations conduded, the work line and floor space.

2ch slot with independent insert / eject simplifies operation.

2ch slot with independent insert / eject simplifies operation.

ln this uniquely innovative design, the entire cassette is loaded into the front slot and ejected out of the rear slot. This helps make the examination handling process exceptionally smooth and efficient.

43.75μm Read Function (option)

ln addition to the 175 and 87.5μm read capability, REGIUS MODEL 190 is capable of supporting a new 43.75μm read function for mammography (outside US). This function is invaluable for producing diagnostic quality for mammography images, where recognition of subtle pathological changes is essential.

Featuring a new cassette size to provide the ideal examination environment.

ln addition to the world's first 11"×14" size featured in REGIUS MODEL170, the new line-up available on REGIUS MODEL 190 includes the 15×30cm size to provide even greater examination efficiency.



ImagePilot CR

ImagePilot CR

The complete solution for converting to Digital Radiography!

Modernize Your Imaging Workflow With Revolutionary CR Technology



Now you can easily convert your practice to digital radiography with the ImagePilot CR System. This single system solution is specifically designed for private practice offices and clinics.

ImagePilot CR is the newest technology in CR imaging. It simplifies CR image acquisition to the push of a button. This is made possible by AutoPilot Image Processing which completely automates the image optimization process. With AutoPilot, you get consistently superb images with every exposure.

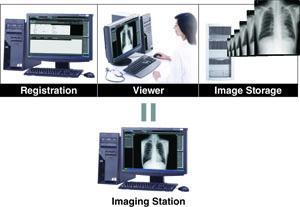

In addition, ImagePilot pioneers the true meaning of an integrated CR system. It combines patient registration, CR acquisition, image viewing and storage in one system that is easy to use and maintain. These advanced features eliminate the need for a separate PACS.



A Complete Solution for Converting to Digital Radiography!

ImagePilot CR includes:

Imaging Station

• Patient Registration

• One click image acquisition—AutoPilot

• Image Review with annotation and measurement tools

• CD/DVD burning for distribution and archiving of exams

• Diagnostic report and referral option

• Local image storage with backup and remote storage options

• Optional client stations for image review in exam rooms or for patient registration

Cutting Edge Nano CR Reader

• Superior image quality

• User serviceability

- Cassette release handle to remove jammed cassette—no service call necessary

- Optical unit “sweeper” for cleaning CR optics and maintaining image quality

• Unique maglev linear motor technology increased reliability and longer life

• Does not require changes to the X-Ray Room. Simply use the CR cassettes instead of Film cassettes

Viztek delivers an advanced workstation to seamlessly integrate clinic workflow while encompassing a powerful suite of digital tools. The system boasts a fully integrated patient database and imaging and communication system. Bundle opal viewing software and server/workstation hardware for the input, display, and storage of images from the modality of your choice. The result is a system that meets your needs and exceeds your expectations, without exhausting your budget.

Now add our new viztek CR to complete your digital bundle. the easy to use tabletop CR can produce 56 plates per hour while producing crisp image quality. Retire your chemical processor and provide your facility with viztek's premiere CR coupled with Opal-Chiro PACS software for superior image management.

Chrio Specific PACS Tool-set

  •  AtlasOrthogonal Analysis
  • Gonstead measurements
  • Upper Cervical Analysis
  • George's Lines
  • LLium Analysis
  • Line Drawing
  • Measuring
  • Angles (Regular, Cobb)
  • Cervical Curve
  • Lumbar Curve

CR Specs

  •  Single Cassette Feed
  • 4 Cassettes Includes
  • Opal Front-End Viewing Software
  • Data Acquisition: 20 bits/pixel
  • Pixel Matrix Size:3480x4248
  • 14x17 cassette size: 10 pixels/mm
  • Power Requirement:120v/60Hz
  • Dimension:27.2 x 27.6 x 18.x2
Benefits
  • Exam room viewing software
  • Multi modality, multi vendor compatibility
  • CD burning and paper print functions
  • Auto routing and film printing
  • importing cds from the outside facilities
  • Scan documents into exams
  • Training and 24/7support for hardware and software components
  • Disaster recovery auto archive images to viztek off site location
